Description

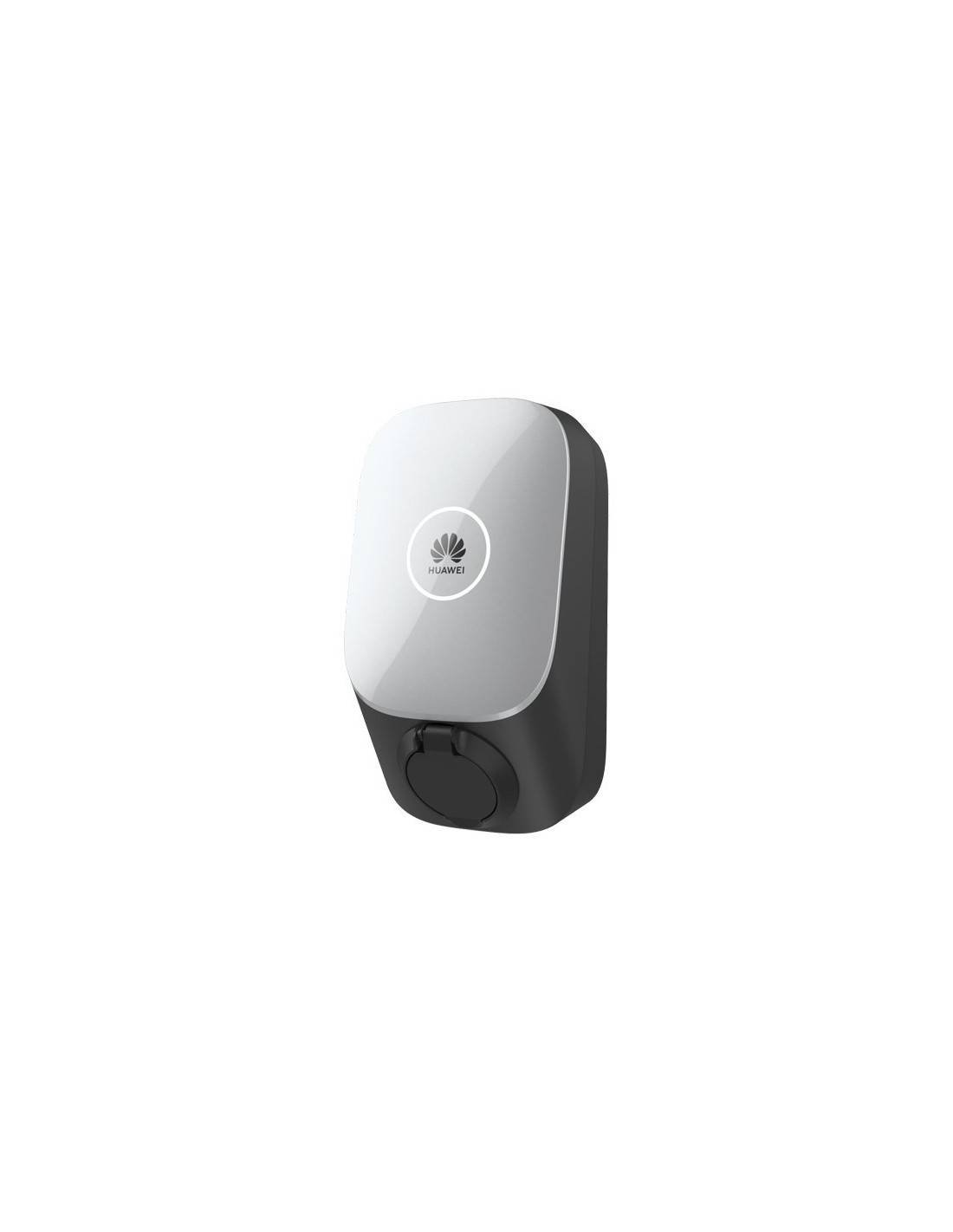

HUAWEI SCharger 7KS-S0 electric chargers offer the following features:
- – PV Power Preferred.Power Your Car with Solar.Make EV Even Greener
- – Automatic Phase Switch 1.Automatic Switch between 1 Phase and 3 Phase.More Usable Green Power.
- – 3 Ways Authentication.Bluetooth, RFID and APP.Avoid Accidental Charging.
- – Automatic Detection and Adjustment Avoid Accidental Charging .No Worry about Overloa
- – All on a Single APP.Full Control Through One APP.for All PV + ESS + Charger
- – 3-Step Installation.Fast Installation in 16 Minutes.Wiring-free Maintenance
Datasheet:
| Model | HUAWEI SCharger 7KS-S0 |
| Charge power (configurable) | 1.4 kW to 7.4 kW
|
| Nominal voltage | 1.3 kW to 7.4 kW (configurable) |
| Rated voltage | 230 V (1-phase) ± 20% |
| Nominal current (configurable) | 6–32 A (1-phase) |
| Nominal frequency | Nominal frequency |
| Vehicle connection | Type 2 socket |
| Cable width | Up to 10 mm2 |
| Network types | TN, TT, IT |
| Protocol | Modbus TCP |
| Communication | Wi-Fi/Ethernet |
| Charger status information | WRGB LED, App |
| Authentication | RFID (ISO-14443-A), App, Bluetooth |
| Remote control & monitoring | App |
| Working mode | Normal Charge Scheduled Charge PV Power Preferred |
| Cable protection | Cable E-Lock via App |
| Residual current protection (RCD) | Type A(30mA) + DC 6 mA integrated |
| Fire Class | UL94 |
| Overcurrent protection | IEC 61851-1 |
| Over-temperature protection | Yes |
| Surge protection | CAT II |
