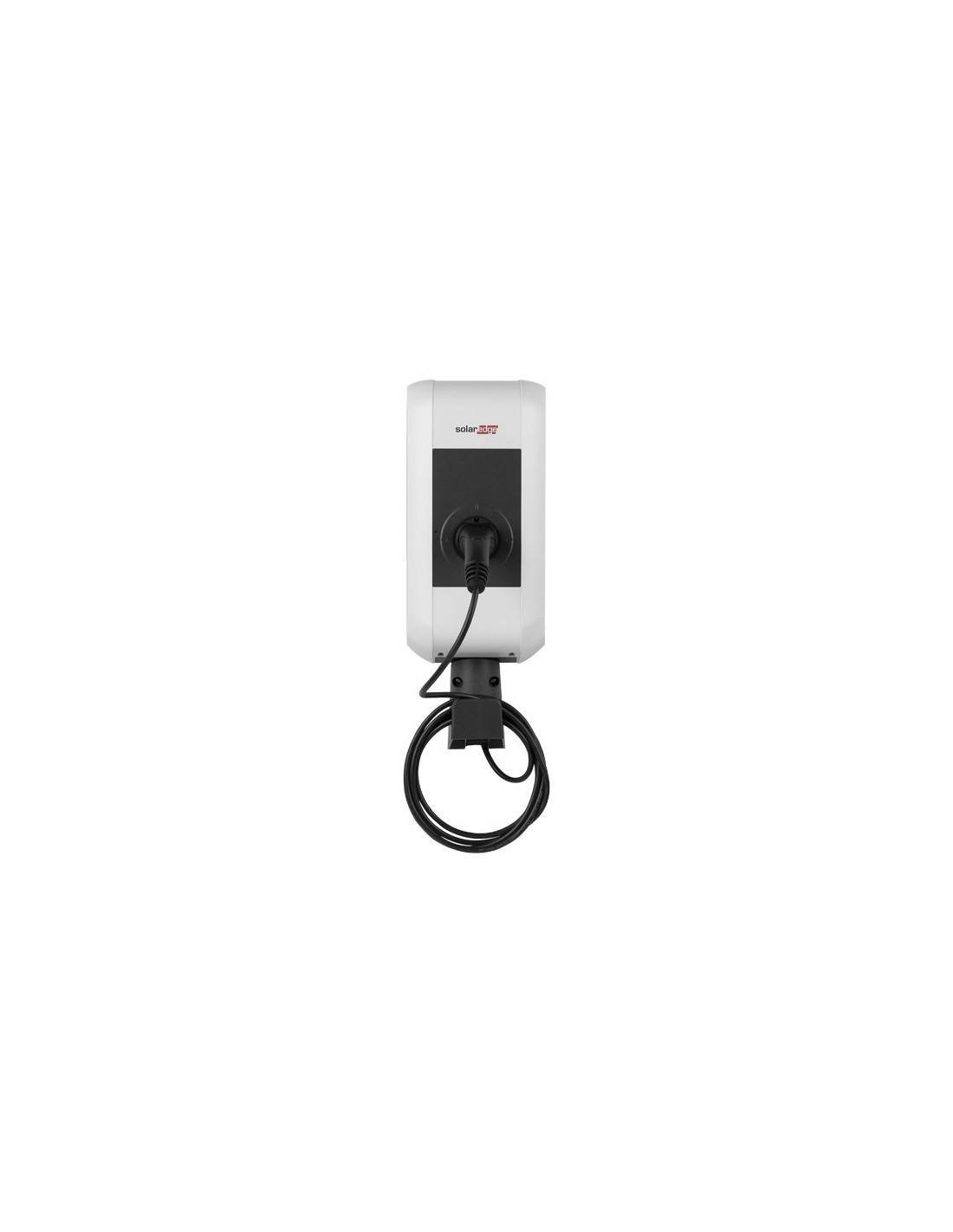

Electric charger SOLAREDGE Home EV Charger, 22 kW, 6m Cable, Type 2 connector

Name: Electric charger SOLAREDGE Home EV Charger, 22 kW, 6m Cable, Type 2 connector
Brand: SMA
SKU: 1529
Price: 1309.60 USD
Availability: InStock

$1,309.60

Reference (SE-EVK22C00-01 | 41-112398)[B]

Electric charger SOLAREDGE Home EV Charger, 22 kW, 6m Cable, Type 2 connector. EV charging solution that seamlessly integrates with the full .SolarEdge ecosystem Mode 3 charging station, with up to 32A (22kW) charging power Suitable for single and three phase installations, for both indoor and outdoor use

Utilizes excess PV to charge EV’s from the sun, for reduced homeowner electricity bills* Control and monitoring via the mySolarEdge app, including remote operations, smart scheduling and charging history.

Category: Electric chargers Brand: SMA

Description
Reviews (0)

Description

SMA EV-CHARGER electric chargers offer the following features:

– EV charging solution that seamlessly integrates with the full
– SolarEdge ecosystem
– Integrated optional RFID card authentication and MID/ME meter
– OCPP compatible
– Includes an integrated 6m EV charging cable with Type 2 connector or Type 2 socke

Datasheet:

Model	SolarEdge EV Charger
Rated AC Power Output	4.6 / 7.4 / 11 / 22 KW
Rated Current (configurable	10 / 13 / 16 / 20/ 25 / 32 Single Phase or Three Phase
Nominal AC Output Voltage	3 x 230 / 400
Line Frequency	50 Hz
Mains Forms	TT / TN / IT
Internal Consumption	Idle: 4, plugged in: 5, charging: 7
Charge Mode	Mode 3 in accordance with IEC 61851-1 AC charging
Over-Voltage Category	III, in accordance with EN 60664
Protection Class	IP54
Protection Against Mechanical Impact	IK10
Rated Short-Circuit Current	< 10 (effective value in accordance with EN 61439-1
Residual Direct Current Detecting Device (RDC-DD	<6 (characteristic in accordance with IEC 62955, < 10 s
Ventilation	No
