Description

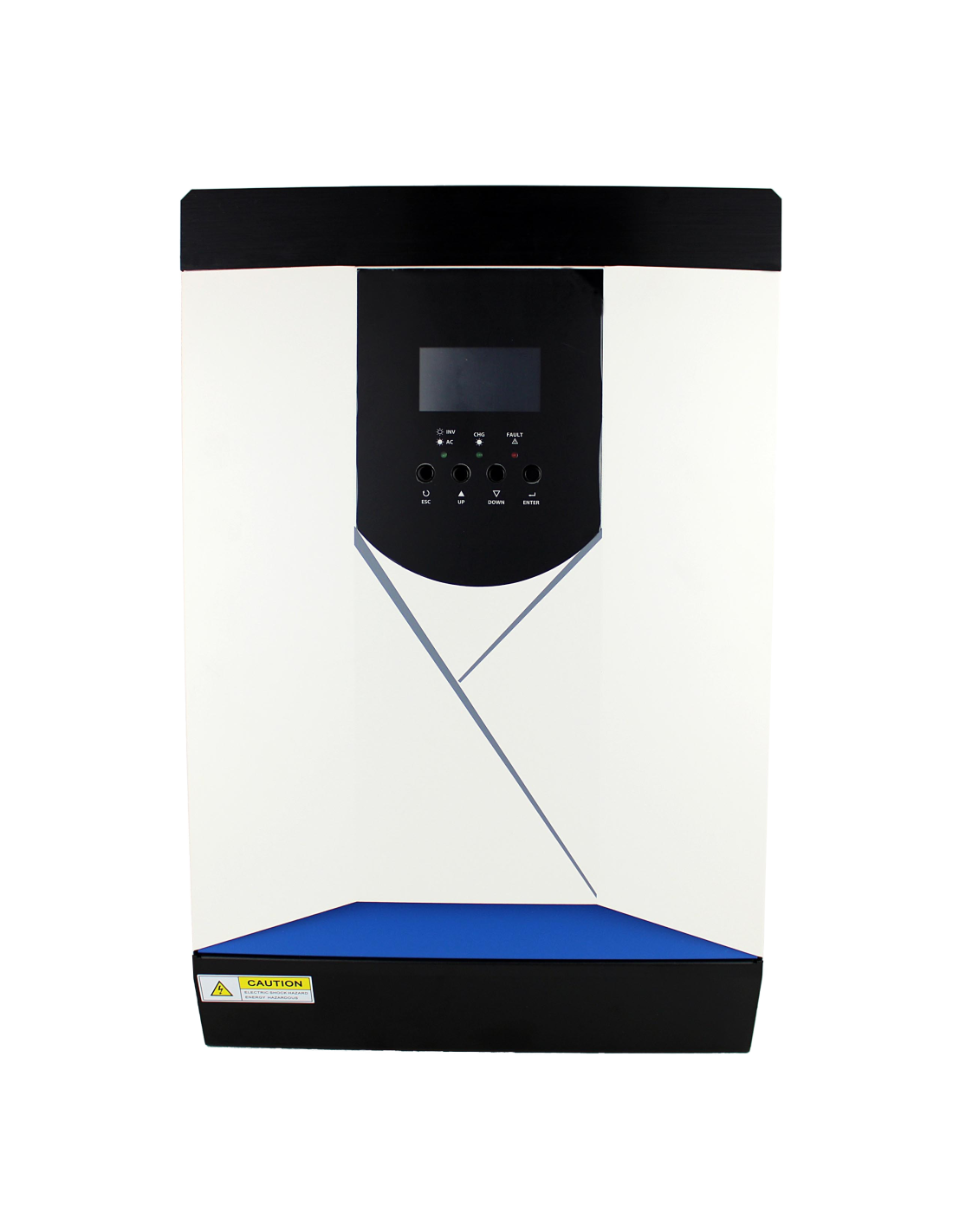

The inverter Solar Axpert MKS 3K-24V stands out also for its price for the following characteristics:
- – Inverter Isolated pure sine wave wave of great efficiency
- – Output power factor of 1 which involve 3KW of real power
- – MPPT loading regulator integrated in the inverter solar
- – Wide range of input voltage selection of the inverter Solar (90-280V)
- – Wide range of selection of entry current of the inverter Solar for battery charge up to 90A
- – Configurable AC / Solar Entrance through the LCD screen
- – It has auto-land while the AC part is recovered or starts again
- – Overvoltage and short circuit protections in the inverter solar
- – Option for coupling remote control of the inverter charger
Technical data of inverter solar:
| Model | Axpert MKS 3K-24 Plus |
| Nominal power | 3000va / 3000w |
| Entrance voltage | 230 V / from 90V to 280 V |
| Network assigned frequency | 50 Hz to 60Hz |
| Output voltage AC | 230VAC + 7-5% |
| Maximum power peak transient | 6000va |
| Efficiency peak | 93% |
| Waveform | Pure-stenoidal |
| Battery tension | 24vdc |
Load floating tension
27vdc
Overload protection
31vdc
Maximum power PV soak input
1500w
MPTT range in operating voltage
60-115vdc
Maximum tension of circuit open by String
145vdc
Maximum solar current
60a
Maximum AC current
20A to 30A
