Mounting system 15º with ballast Renusol ConSole+

Mounting system 15º with ballast Renusol ConSole+

$135.00

 CS15

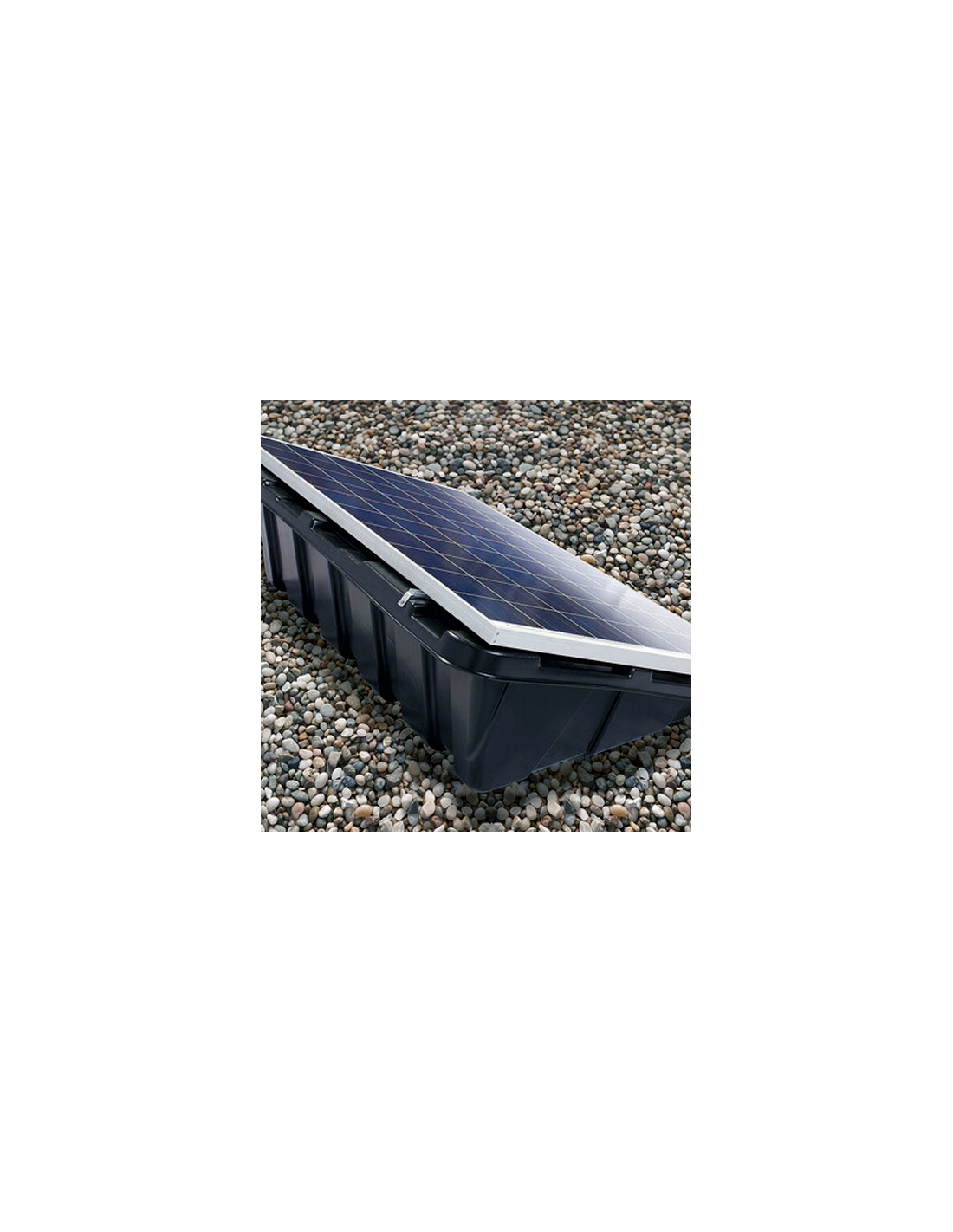

Renusol ConSole is a non-perforated assembly for flat roofs based on ballast. Renusol ConSole is a polymeric material (HDPE) trough at 15º that allows the easy installation of solar panels without the need to penetrate the roof. This kit includes the trough, the mounting profiles and all the fixing material.

The Renusol CS+ system is the perfect solution for fixing solar installations on flat roofs or in the open field, especially on converted surfaces. It is also perfect for small installations.

Suitable for panels up to 2400mm x 1100 mm.

Category: Brand:

Description

Technical characteristics:



System: Solar mounting system with independent ballast.

Warranty: 10 years

Roof slope: maximum 5º without additional measures.

Temperature Range: -30ºC to 50ºC

Material: HDPE, aluminum and stainless steel

Module inclination: 15º.

System weight: 7.9 Kg

Coefficient of friction: 0.5

Maximum snow load: 2.5 kN/m2
