Description

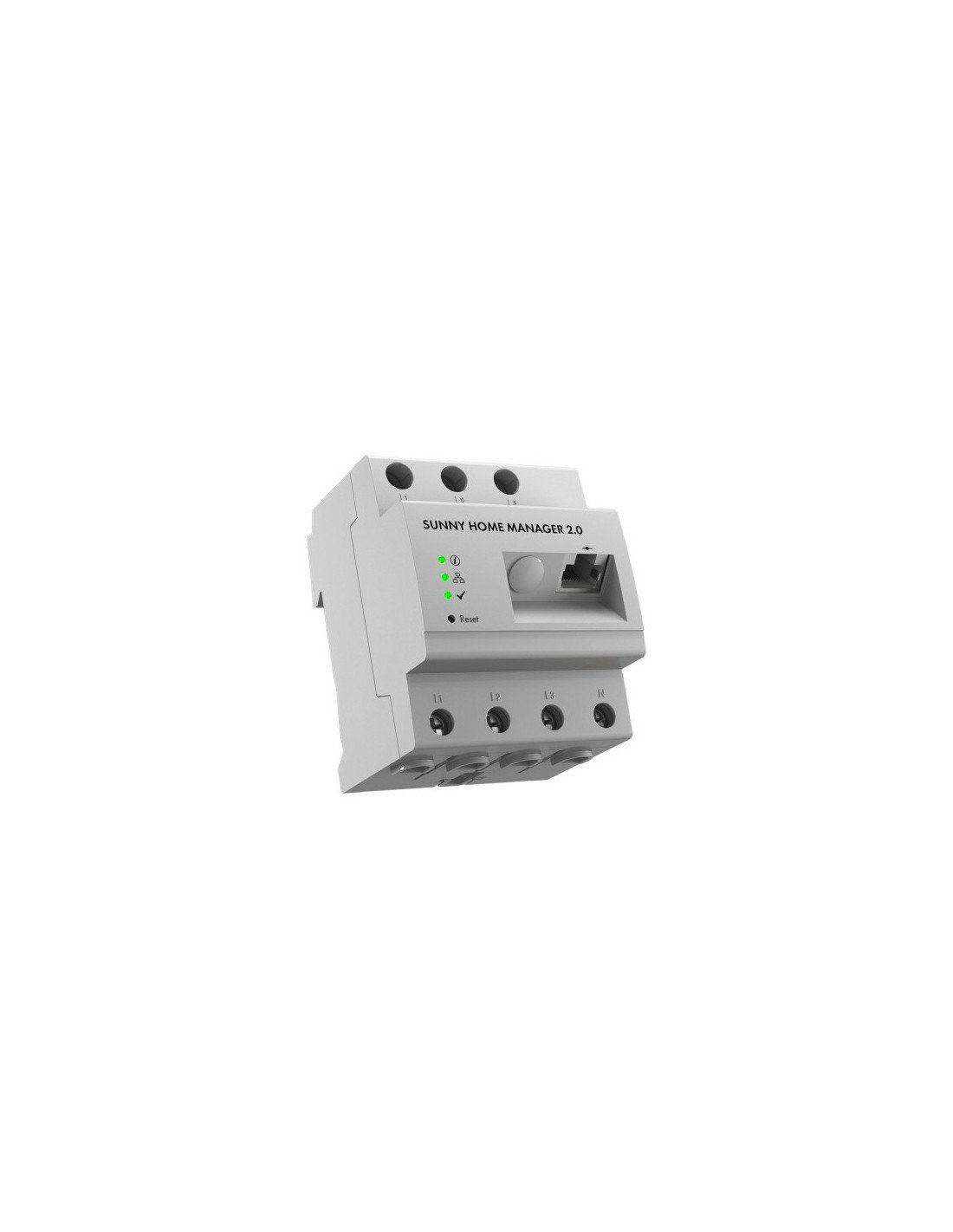

The Sunny Home Manager 2.0 Vatimeter is characterized by the following
- – Energy manager with integrated measuring device
- – Analysis of consumption of individual loads
- – Optimized battery charge on storage systems SMA
- – Quick installation “Plug and Play
- – Overview of all relevant devices, photovoltaic generation and battery systems
- – more efficient use of energy and reduction of electricity costs
- – Energy balance and load data shown in interactive diagrams
- – integrated photovoltaic meteorological and forecast data
- – Monitoring of photovoltaic installation through Sunny Portal and Sunny Places
- – Connection of devices through standard protocols and compatible radio-controlled plugs
Technical data:
| Model | Sunny Home Manager 2.0 |
| Energy manager | |
| Connection to the local router | via Ethernet cable (10/100 Mbit / S, RJ45 plug) |
| Connection inverters solar SMA and battery systems | Ethernet or WLAN through a local router |
| Connecting equipment for power management To obtain application examples for connection and appliance controls, see Technical information on Sunny Home Manager 2.0 product page www.sma-solar.com | a. Direct data connection (EEBUS, SEMP) (for example, smart heat pumps, electrical car charging stations, heating elements, appliances, etc.) b. Radiocontrol Shot WLAN Edimax SP-2101W (available through the online store) (on / off controls for domestic devices up to 12 a of power) |
| Integrated measuring device | |
| Measurement accuracy, measuring cycle | 1%, 1000 ms |
| Standard application | Measurement of the purchased electricity and feeding the network at the connection point to the network |
| Alternative application | a. Measurement of photovoltaic generation power b. Inactive measurement (L1, N, Network) |
| Maximum number of devices in the system (excluding the energy meter SMA) | |
| Total number of devices in the system | up to 24 |
| of which devices such as appliances in the active management of energy | up to 12 |
| Tickets (voltage and current) | |
| Nominal voltage | 230 V / 400 V |
| Frequency | 50 Hz / ± 5% |
| Nominal current / limiting current by line conductor | 5 A / 63 A (> 63 A can be covered through external current transformers) |
| Connecting cross section | 10 mm² at 16 mm² (for applications of 63 a) |
| Couple for screw terminals | 2.0 nm |
| Environmental conditions in operation | |
| Room temperature | -25 ° C A + 40 ° C |
| Storage temperature range | -25 ° C A + 70 ° C |
| Protection class (according to IEC 62103) | II |
| Degree of protection (according to IEC 60529) | Ip2x |
| Maximum permissible value for relative humidity (without condensation) | 5% to 90% |
| Establishment altitude range | 0 m to 2000 m |
| General data | |
| Dimensions (w / h / d) | 70 mm / 88 mm / 65 mm |
| Upper hat rail wide units | 4 |
| Weight | 0.3 kg |
| Location of assembly | Switching cabinet or meter |
| Type of assembly | Mounting on top hat rail |
| Danger | 3 x LED |
| Own consumption | |
| Functions | |
| Operation and visualization | through Sunny Portal, Sunny Places, Sunny Portal Pro |
| Update function | Automatic for Sunny Home Manager and devices SMA connected |
| Warranty | 2 years |
| Certificates and Approvals | www.SMA-Solar.com |
| Accessories | |
| Power meter SMA as a complement to the integrated measuring device | Precise three-phase measurement, connection through Ethernet in the local network. |
| Designation of type | HM-20 |
