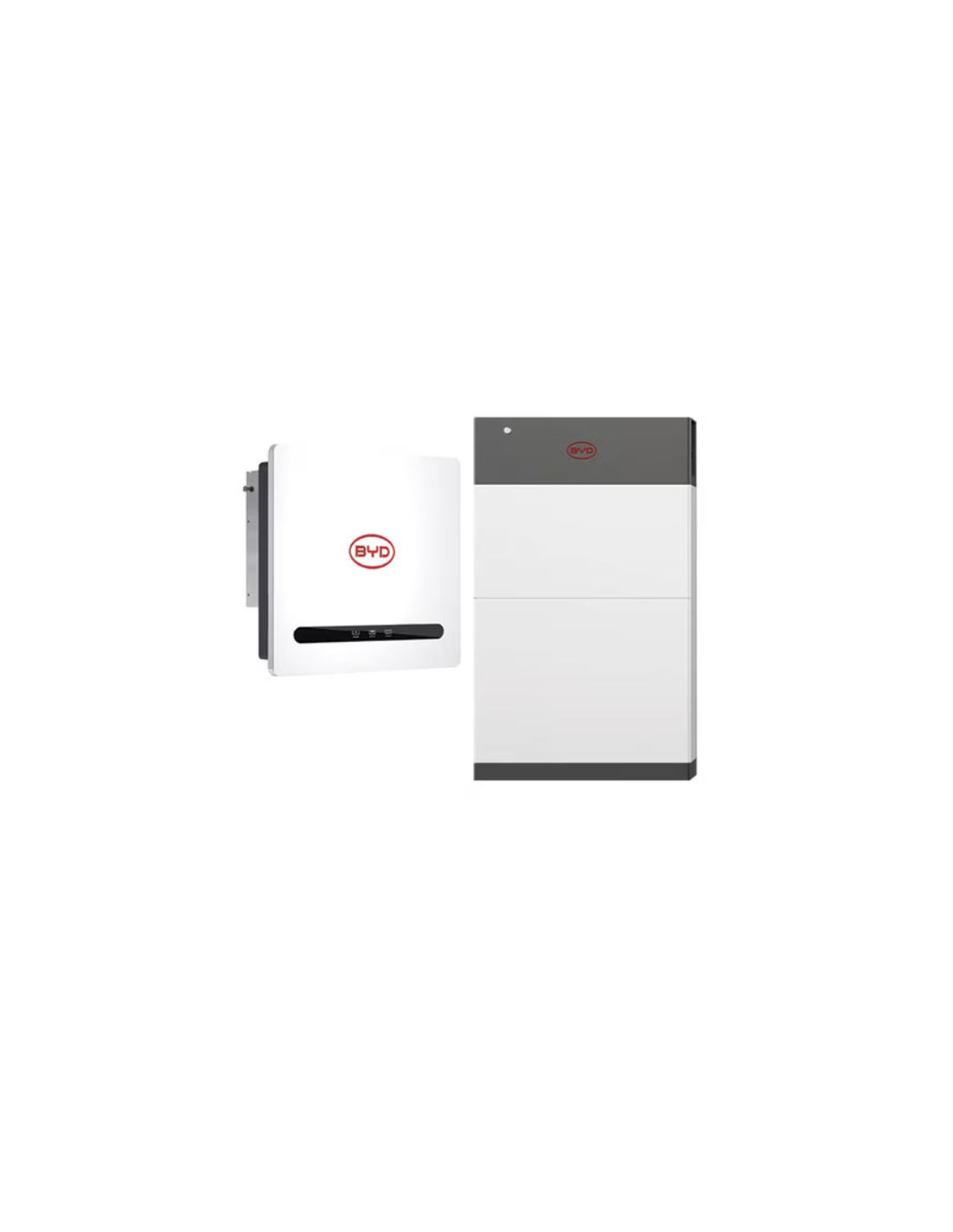

BYD 6KW single-phase inverter kit (integrated backup) + Battery 10.7 kWh

Comprehensive system BYD: High voltage and advanced energy backup

This kit has been configured to offer an uninterrupted solar energy solution. When combining components of the same brand, a native compatibility, optimizing the loading speed and eliminating communication errors between the inverter and the battery.

Components of the kit and its advantages

• Hybrid Inverter SH6K (6KW): The engine engine, capable of managing large photovoltaic fields and offering high quality emergency (backup) energy with a Thdy.

• Control unit HVE BCU: Acts as the storage brain, monitoring the loading state and facilitating the Intelligent remote diagnosis.

• Modular storage HVE (10.7 kWh): Formed by the union of high density modules that take advantage of the architecture of high voltage to reduce losses and improve overall performance.

Strengths of the solution

• Compact and versatile design: HVE technology allows a depth of just 14 cm, allowing its installation in zones of passage or garages without storbar.

• Safety and durability: The chemistry LFP BYD He is a world reference for his thermal stability. The system is designed to last more than a decade with minimal maintenance.

• Acoustic comfort: Thanks to the Natural Convection Refrigeration, the system does not use fans, operating in a totally silent way inside the home.

• Surge protection: Includes Series SPD Type II in CC and Type III in CA, protecting the electronics against atmospheric phenomena.

Technical characteristics of the set

• Admitted photovoltaic power: Up to 9000 WP.

• Usable battery energy: 10.72 kWh.

• Roundtrip Efficiency: ≥ 95%.

• Maximum loading / unloading current: 35 A.

• Operational temperature range: Of -20 ° C to + 55 ° C.

• Connectivity: Wi-Fi, LAN, Bluetooth and support for mobile app.

Frequently Asked Questions (FAQ)

1. What appliances can work with the integrated backup? Thanks to the power peak of 200%, the system can feed from lighting and refrigerators to equipment with demanding start engines during a network cut.
2. Is it possible to expand the battery’s ability later? Yes, the system is totally modular. You can add more HVE modules or even connect towers in parallel to reach 70.74 kwh.
3. How do you behave the outdoor equipment? Both the inverter as the battery have a degree Ip65, what makes them resistant to rain and dust, allowing its assembly on patios or facades.
4. Do you require complex manual configuration? No, the system has automatic configuration and stretching simplified through the app of BYD, Allowing remote firmware updates.
