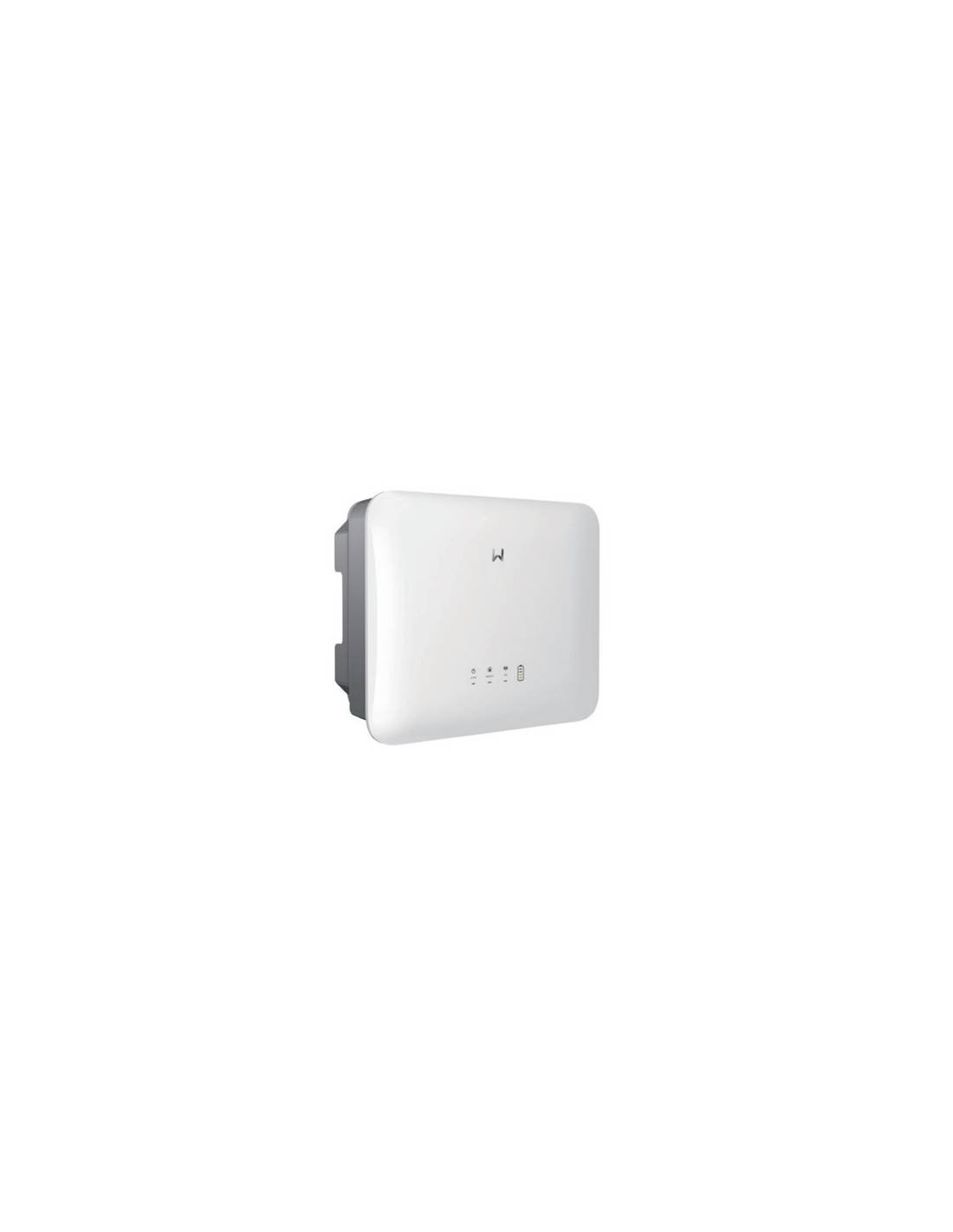

Hybrid Inverter GoodWe Gw3600-ES-20
€1,139.99
Inverter Solar Hybrid Single-phase GoodWe Gw3600-ES-20. It has a maximum output of 3680 going on alternating current and function backup.
Advising guarantee for free to 10 years for installers with GoodWe Plus +. The inverter solar hybrid ES G2 provides optimized energy flexibility and meets the needs of combined photovoltaic cover systems. Energy storage facilitates maximum backup of solar energy generated by achieving a high degree of autonomy.
The inverter solar ES G2 is an excellent option for residential applications thanks to its modern design and the ability to integrate with Smart Home systems. A variety of batteries, like batteries GoodWe Lynx Home U or 48V lithium batteries Pylontech, they are compatible with the series ES G2.
Description
The inverter monophase Goodwe GW3600-ES-20 has an integrated power supply and is compatible with a variety of low voltage solar batteries from the best manufacturers, such as batteries Pylontech US2000C, US3000C and US5000, as well as the battery itself GoodWe Lynx Home U.
The new line of inverters GoodWe series ES G2 satisfies the highest safety standards. The inverter Goodwe ES G2 protects the CC side of lightning and thunderstorms and saves money with integrated type II SPD CC protection. In addition, it has an ACCI (electric arc detection) optional, which offers protection in the top DC part.
Some of its functions are:
- – Cargo and generator control
- – Possibility of simultaneous management
- – High backup power with an equivalent switching time of 10 ms for SAI/UPS.
- – Integration in smart home systems
| Model | Goodwe GW3600-ES-20 |
| Battery | Lithium ion |
| Nominal battery voltage (V) | 48 |
| Battery voltage range (V) | 40 ~ 60 |
| Max. Input voltage (V) | 600 |
| Range of operating MPPT voltage (V) | 60 ~ 550 |
| Start voltage (V) | 58 |
| Nominal input voltage (V) | 360 |
| Max. Entry current by MPPT (A) | 16 |
| Max. Short circuit current by MPPT (A) | 23 |
| Number of followers (MPPT) | 2 |
| Number of FV series by MPPT | 1 |
| Operating temperature (° C) | -25 ~ +60 |
| Relative humidity | 0 ~ 95% |
| Max. of operation (m) | 3000 (> 2000 Power regulation) |
| Refrigeration method | Natural convection |
| User interface | LED, WLAN + APP |
| Communication with BMS | CAN |
| Communication with meter | RS485 |
| Communication with portal | WiFi / WiFi + LAN / 4G |
| Weight (kg) | 20.8 |
| Measurements (Width × High × Deep MM) | 505.9 × 434.9 × 154.8 |
| Topology | Non-isolated |
| Night consumption (W) | |
| Degree | IP65 |
| Montage method | Wall mount |
| Apparent nominal power to network (VA) | 3680 |
| Max. Apparent power to network (VA) | 3680 |
| Max. Apparent power from the network (VA) | 7360 |
| Nominal output voltage (V | 220 / 230/240 |
| Nameric Network Frequency (Hz) | 50/60 |
| Max. Network output current (A) | 16.7 |
| Max. Current from the network (A) | 33.5 |
| Power factor | ~ 1 (Adjustable, from 0.8 capacitive to 0.8 inductive) |
| Max. Total harmonic distortion | |
| Apparent nominal power reserve (VA) Exit | 3680 |
| Max. Apparent output power (VA) Exit | 3680 (7360 @ 10sec) |
| Max. Output current (A) | 16.7 |
| Nominal exit voltage (V) | 220 / 230/240 |
| Nominal output frequency (Hz) | 50/60 |
| Output THDV (in linear load) | |
| Max. efficiency | 97.6% |
| Max. Battery efficiency to network | 95.5% |
| MPPT efficiency
|
99.9% |
Additional information
| Power (KW) | |
|---|---|
| MPPT | 2 |
| Inverter Type | Hybrid |
