Hybrid Inverter Three-phase GoodWe GW8000-ET-20 | 8kw et g2

Description

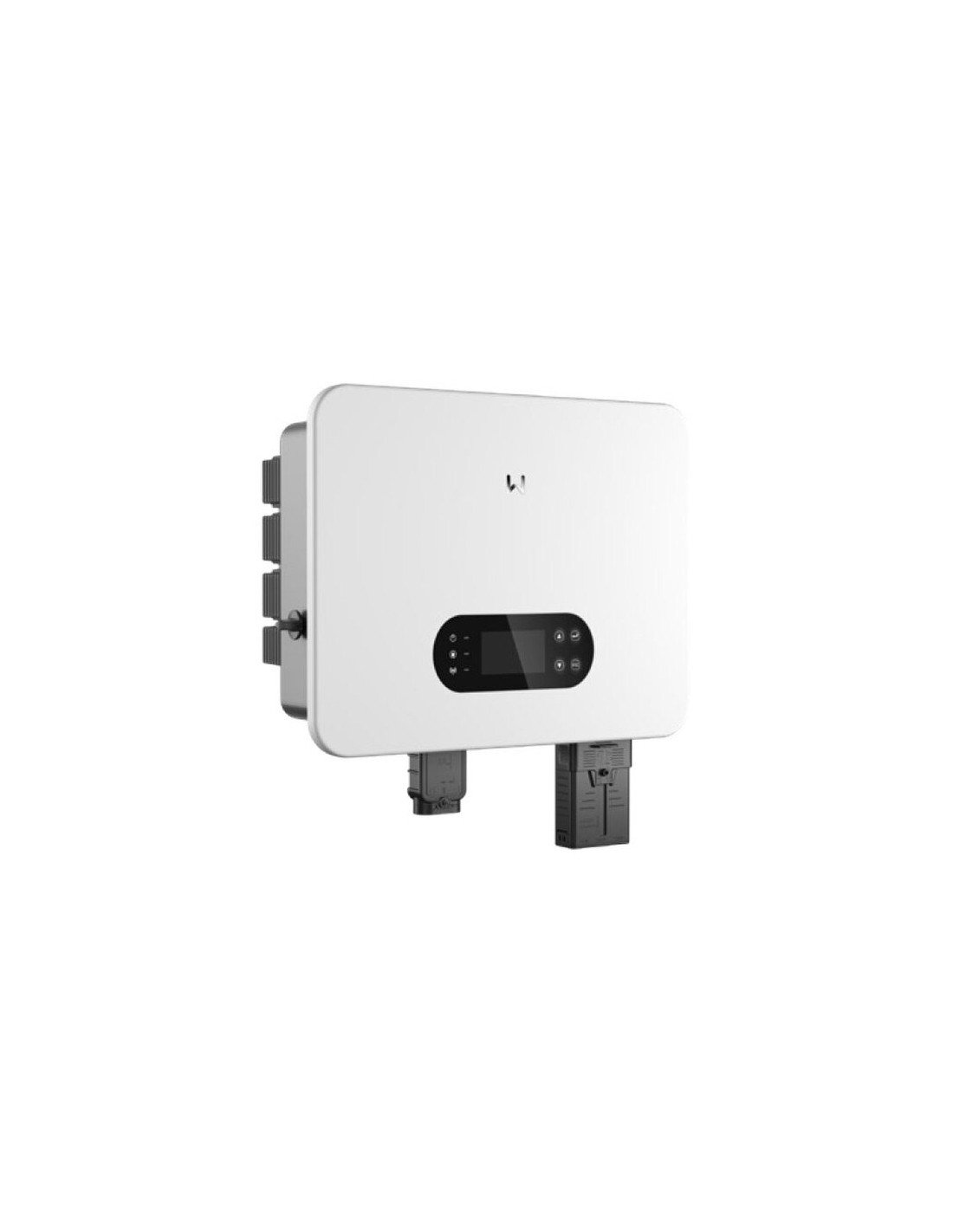

High-level three-stage self-consumption: GoodWe GW8000-ET-20

The GoodWe GW8000-ET-20 is the perfect core for an installation of own consumption smart. This hybrid Inverter three-phase has been designed to offer unprecedented flexibility, combining intelligent operating modes with a leading emergency response capacity in your class.

Backup power and critical security

On Tienda Solar we highlight the reliability of the ET G2 series. The 8KW model not only feeds your home efficiently, but acts as an energy security system. Your nominal backing out 8kva is able to duplicate temporarily to support the start-up of demanding equipment. . In addition, it integrates advanced protections such as AFCI 3.0 against electric arcs and surge unloaders Type II both in cc and in ca.

Optimization and intelligent connectivity

To achieve maximum autonomy, this inverter it is perfectly integrated with the Lynx F G2 batteries and the HCA electric vehicle charger GoodWe. . Your Smart Meter integrated it allows precise management of energy flow without complex additional components. . Thanks to its passive refrigeration, the team operates extremely silently (), which facilitates its location anywhere in the house.

Featured advantages:

• Superior European Efficiency: Yield of 97.2% for a real use of energy.

• Advanced PV Management: 2 Mppts that admit up to 12800W photovoltaic plates.

• High voltage battery: Wide range of battery operation (150-720V) for fast loads up to 30A.
• All terrain design: IP66 protection suitable for demanding environmental conditions and temperatures up to 60 ° C.
• Complete monitoring: Communication via WiFi, LAN and Bluetooth for total control from the portal GoodWe.

Technical data:

• Nominal power: 8000 W.

• Max. Power PV Entry: 12800 W.

• Max. Current load / Unload: 30 A.

• Nominal voltage Battery: 500 V.

• Dimensions: 496 x 460 x 221 mm.

• Weight: 25 kg.

Frequently Asked Questions (FAQ)

1. What power can you supply if the light is cut? The GW8000-ET-20 offers 8000VA continuously in back-up mode, but you can reach peaks 16000VA for 60 seconds to cover high point consumption.
2. Is it compatible with any battery? Is designed to work with high voltage lithium batteries (HV). . For optimal performance and extended warranty, the use of the series is recommended GoodWe Lynx F G2.
