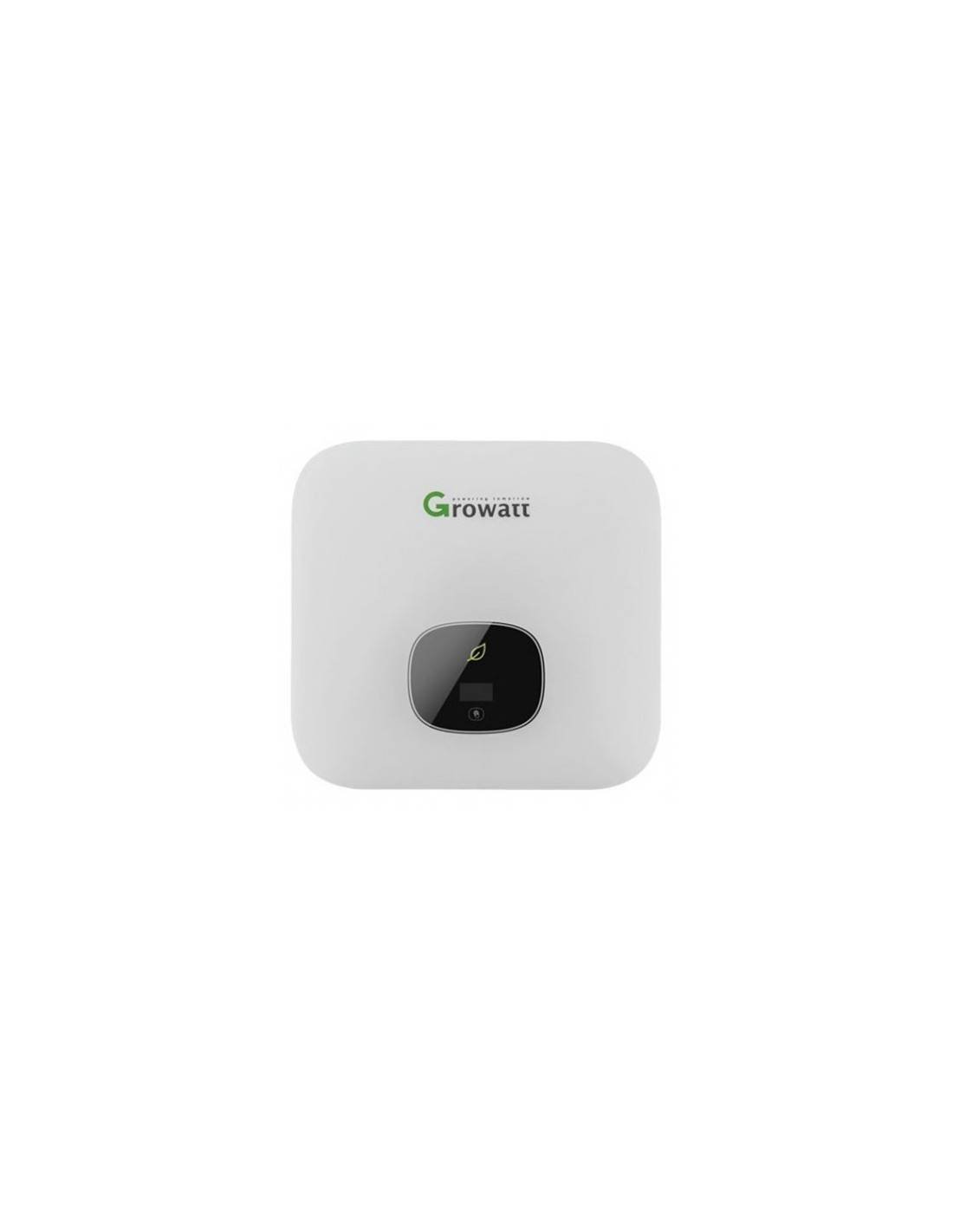

Inverter Solar Hybrid Network Connection Growatt 5000TL-Xh- single-phase
€812.37
This inverter It provides up to 5000W of output power. Efficiency Max. 98.4%. They are also compatible with lithium batteries so they can be installed together. 5 years warranty with the possibility of 10-year enlargement, subject to manufacturer’s conditions.
On Inverter Growatt Min 5000TL-XH should be highlighted that it has numerous electrical protection systems that make it one of the inverters Solar consumption domestic in safer home. Among its main characteristics, it is worth highlighting its investment of polarity, anti-island protection, over current, against short circuits and overvoltage, excessive increase in temperature among others. This inverter It has a 5 year warranty, being expanded up to 10 years.
The inverters Growatt from the XH range are compatible with lithium batteries, so you can install them together. Its reduced dimensions allow both the inverter as batteries close to each other, so that the connection is made with the least possible wiring.
- – Maximum Recommended Power To Be Connected: 7000W.
- – Max. Effience 98.4%
- – Dual MPP Trackers
- – Maximum DC Voltage: 500V.
- – Starting Voltage: 100V.
- – MPPT Voltage Range: 80 – 500V.
- – Nominal Operating Voltage: 360V.
- – Maximum Input Current: 12.5A at Each MPPT.
- – Maximum Short Circuit Current: 16a.
- – Number of MPPT Trackers: 2.
- – Photovoltaic Inputs for Each MPPT: 1
The input characteristics of the Growatt Min 5000TL-XH Inverter Are As Follows:
| Model | Min 5000tl-xh |
| Entrance (DC) | |
| Max. PV power by array (WP) | 10000 |
| Max. DC voltage (V) | 500v |
| Nominal operating voltage DC (V) | 360 |
| Max. Input Intensity by MPPT | 70v-550v |
| Max. Short circuit intensity by MPPT | 13.5 |
| Nominal AC Voltage (Range) v) | 50 |
| Operating start voltage (V) | 120 |
| Nominal AC Voltage | 230V (180-280V) |
| Strings per follower MPPT | 1 |
| Departure (AC) | |
| Nominal power AC (W) | 6000 |
| Max. Power AC (VA) | 6000 |
| Nominal network voltage (AC range of voltage(V) | L / N / PE, 220/230/240 |
| Nominal Network Frequency / Range (Hz) | 50/60 |
| Network Range (V) | 180/276 |
| Drums | |
| TYPE | Lithium or Lead Acid |
| Nominal voltage | 48v |
| Tension range | 42-58v |
| Ability | 50-2000ah |
| Power maximumLoading / unloading | 000w |
| Current maximumLoading / unloading | 60a |
| DC / AC Surge Protection | Type II / Type III |
| Power (KW) | |
|---|---|
| Phase Type | Single phase |
| Max Current Input (A) | 12 – 12.99 |
