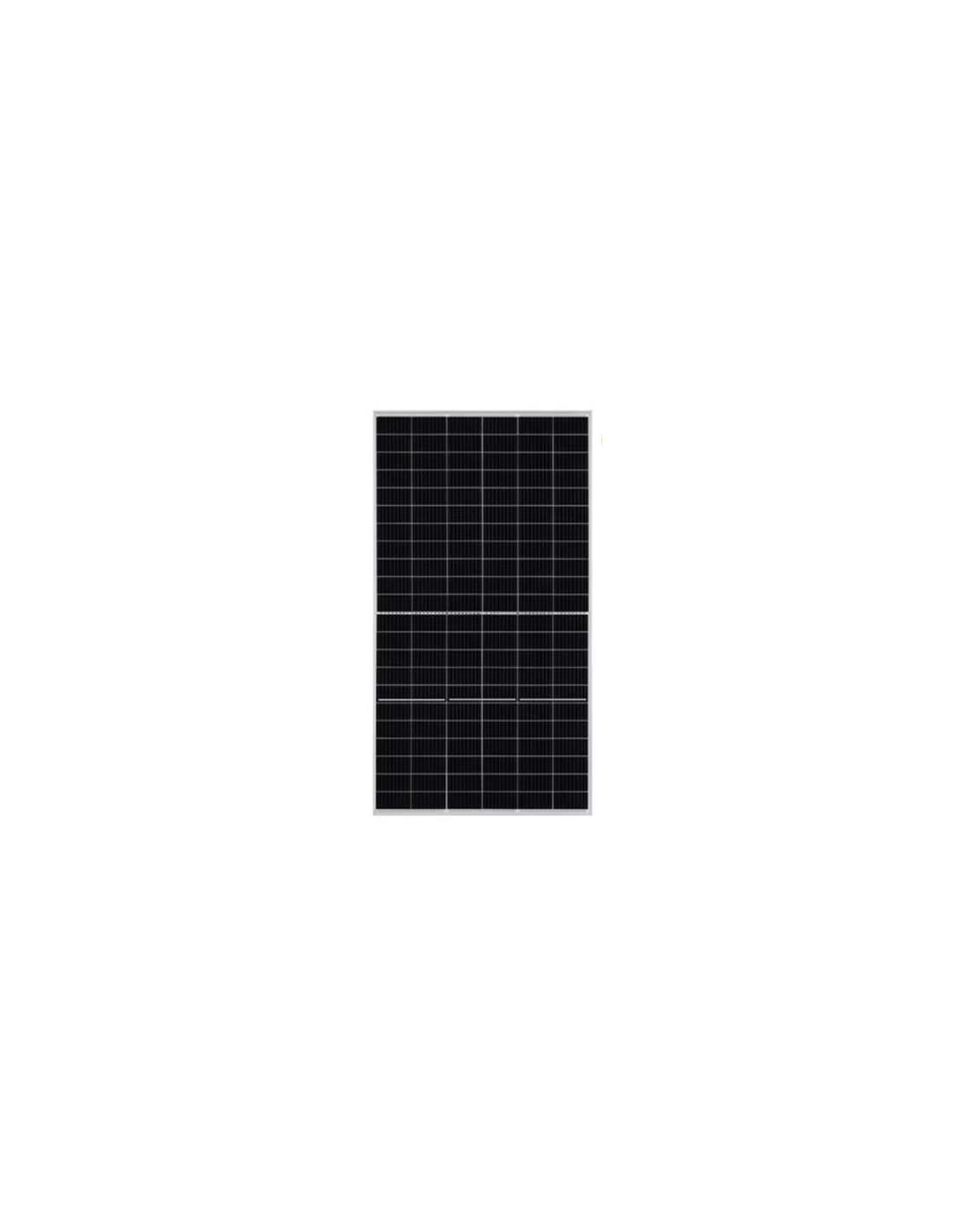

JA Solar 505Wp half-cut Silver
€84.28
(JAM66S30-505/MR | 31-114920)
Deep Blue 3.0 series 66-cell half-cut 505W monocrystalline photovoltaic module with MC4 EVO2 connectors and long cables. 30 mm frame. Monocrystalline photovoltaic module Deep Blue technology 3.0 series of 66 half-cut 505W cells with MC4 EVO2 connectors and long cables. 30 mm frame
JA Solar 505W half cut solar panels offer many advantages and have advanced technology:
- – JA Solar 505W Monocrystalline PERC Solar Panel. Solar panels mounted with PERC 11BB cells and a half-cell configuration offer several advantages. One of them is higher power output compared to other types of panels.
- – Performance and tolerance These panels also have better temperature-dependent performance and less shading effect in power generation. In addition, they have a lower risk of hot spot and a higher tolerance to mechanical loading.
- -Production in low light conditions Another important advantage is their good performance in low light conditions. Even when sunlight is scarce, these panels have improved output thanks to their advanced technology.
Extensive production guarantee
The JA Solar 405Wp panels are a very good choice for both residential and commercial solar installations whether they are grid connected or off grid. It is a cheap panel with excellent performance.
| Model | JAM66s30-505/MR |
| Peak power (Wp) | 505 |
| Power tolerance | 0/+5W |
| Number of cells | 132 (6×22) |
| Efficiency | 21,3% |
| Frame | Anodized aluminum black color |
| Dimensions | 2093 x 1134 x 30 mm |
| Weight | 26,3 kg |
| Cable | 1200 mm |
| Connectors | MC4-EVO2/QC 4.10-35 |
| Glass | /QC Tempered glass 3,5 mm- |
| J-Box | IP68 with 3 diodes |
| Warranty | 12 years |
| Warranty of generation | 84,8% at 25 years |
- Power (W)
- 400 – 445
- Height (cm)
- 170 – 179.9
- Width (cm)
- 110 – 119.9
- Frame
- Black
- Short Circuit Current Isc (A)
- 10 – 10.99
