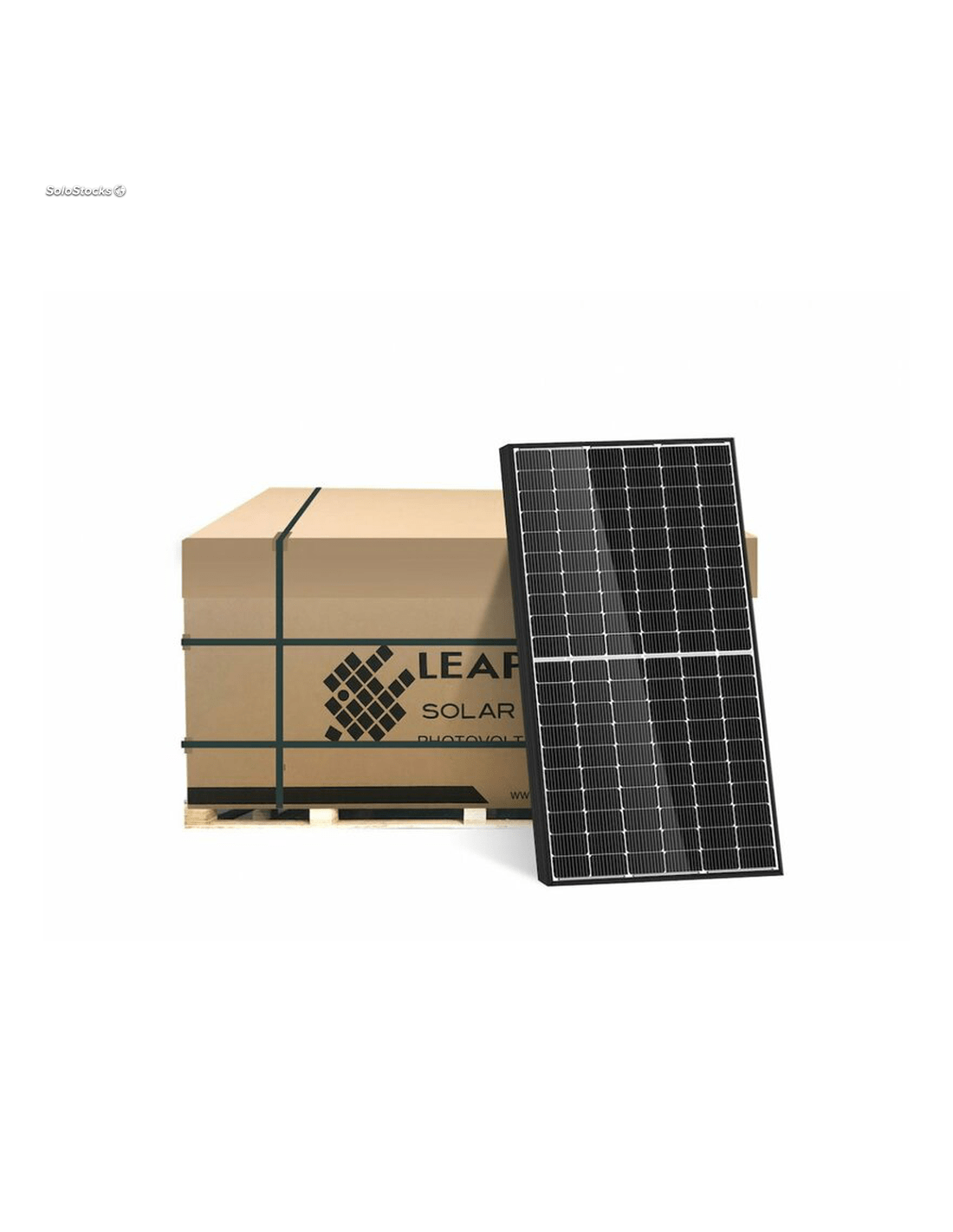

Pallet (31 Units) – Panel solar Leapton Mono 550W [S]
€6,289.40
010089 [S]
Due to its excellent performance, innovative design, and choice of crystals, it offers 21.4% more power than conventional modules while also lowering the working temperature of the panel and boosting efficiency.
15 years for the product and 25 years for the performance are covered by warranties.
The main advantages of this solar panel are:
- Load Capacity Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa done by TUV Nord.
- PID Protection Ensure the attenuation probability caused by PID phenomenon is minimized.
- Low Light Features Higher performance under low light environment.
- Harsh Environmental Adaptability Strict salt spray and ammonia corrosion test by TUV Nord.
- Higher Output Power Module adopts 144 pcs of 182*182mm half cells, the maximum power can reach 550W.
- MBB Cell New circuit design, lower internal current, lower internal resistance loss.
Technical datasheet:
| Model | 530-550W |
| Weight | 27kg |
| Cell Dimensions | 182*182mm |
| Cell Amount | 72*2pcs |
| Maximum System Voltage | 1500 V |
| Module Efficiency | 15.86% |
| Junction Box | IP68 |
| Frame | Aluminum Alloy |
| Cable | 4mm2 , N 300mm/P 300mm or customized length |
| Connector | MC4 compatible |
| Application Level | Class A |
| Open Circuit Voltage | 49.80 V |
| Short Circuit Current | 13.99A |
| Maximun Power Voltage | 41.60V |
| Maximum Power Current | 13.23A |
| Module Efficiency | 21.28% |
| Power (W) | 550 – 595 |
|---|---|
| Height (cm) | 220 – 229.9 |
| Width (cm) | 130 – 139.9 |
