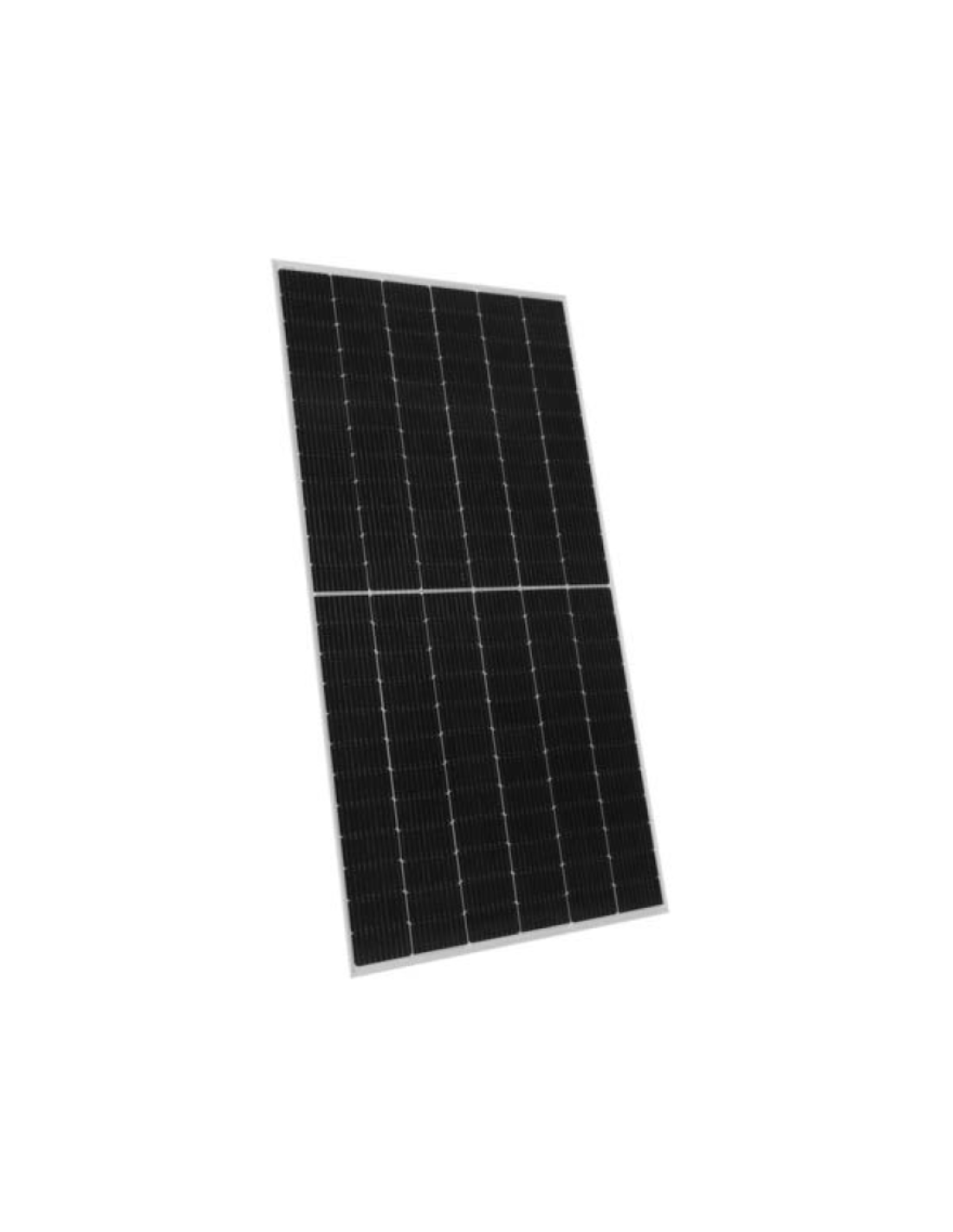

Solar panel Jinko Tiger Pro 530W
€109.00
Jinko Solar 530Wp (72 split cells) monocrystalline photovoltaic module / panel with PERC (Passive Emiter Rear Contact) technology with 20.96% efficiency. Positive tolerance 0/+3% for solar photovoltaic installations connected to the grid or isolated up to 1500V of the system. 10-year product warranty and 25 years of production.
The Jinko solar panels of the monocrystalline Tiger Pro series in their different power variants (up to 540Wp) are composed of 72 split solar cells (virtually 144 cells) with 5 bus bar technology distributed in a grid of 6 columns and 24 rows. This series of Jinko has as the Cheetah series PERC technology which gives it superior efficiencies making its solar panels of high performance and split cells.
The main advantage of the Tiger Pro series, in addition to the distribution of the 5 bus bars on the surface of the cells as already provided by the Cheetah series, is the application of PERC (Passive Emiter Rear Contact) technology. This technology consists of a surface treatment of the back of the solar panel cell that is responsible for capturing the photons of the wave width that passes through the cell and is not captured by it to make it revolve and introduce it back into the cell to generate additional current. For the 530Wp solar panel we highlight the incorporation of split cells which reduces recombination losses and increases the yield by around 1%. With all these technological innovations, the solar panel achieves a yield over 20%.
The main advantages of the Tiger Pro Mono Perc 530Wp series of split solar cells are
-
-
- Reduction of micro cracks in the panel due to the 5 bus bar of the cells that stop their growth
- Cut cell technology that decreases the recombination of electrons in the panel, reduces the size of hot spots and improves the performance of the solar panel in partial shade conditions.
- PERC technology that gives the panel an extra yield of approximately 2% compared to solar panels that do not have this technology.
- Solar panels with very low or no degradation due to PID potential difference.
- PID quality control in the production line for each solar panel
- Anti-reflective glass surface treatment that improves the performance of the solar panel with diffuse radiation. Glass with low iron content that better dissipates the incident heat
- Photovoltaic panel with mechanical wind load capacity of 2.4kPa and snow load capacity of 5.4kPA.
- Solar panel tested under high corrosion conditions (Seberity -B) and certified by TUV
- Low voltage coefficient which reduces the losses of the solar panel when operating under high temperatures.
-
Without a doubt the Tiger Pro Half Cut series from Jinko Solar is a high quality and highest performance solar panel with a very economical price.
Technical features STC (1000 W/m2; T cell 25ºC):
| Model | JKM530M-7TL4-V |
| Peak Power (Wp) | 530 |
| Max power Tolerance | 0/+3% |
| Max Power voltage Vmpp (V) | 40,7 V |
| Max Power current Ampp (A) | 13,01 A |
| Open circuit voltage (Voc) | 49,26 V |
| Short circuit current (Isc) | 13,69 A |
| Efficiency (%) | 20,86% |
| # of cells | 72 Mono 156 x 156 mm Half Cut |
| Dimensions | 2230 x 1134 x 35 mm |
| Weight | 28,9 kg |
| Glass | 3,2 mm and anti-reflectant |
| Frame | Anodyzed Aluminum |
| J-Box | IP68 |
| Cables | PV Cable double insulation 4 mm2, 1290 (+) & 1450 (-) mm |
| Power (W) | 500 – 545 |
|---|---|
| Height (cm) | 220 – 229.9 |
| Width (cm) | 110 – 119.9 |
| Frame | Silver |
| Short Circuit Current Isc (A) | 13 – 13.99 |
