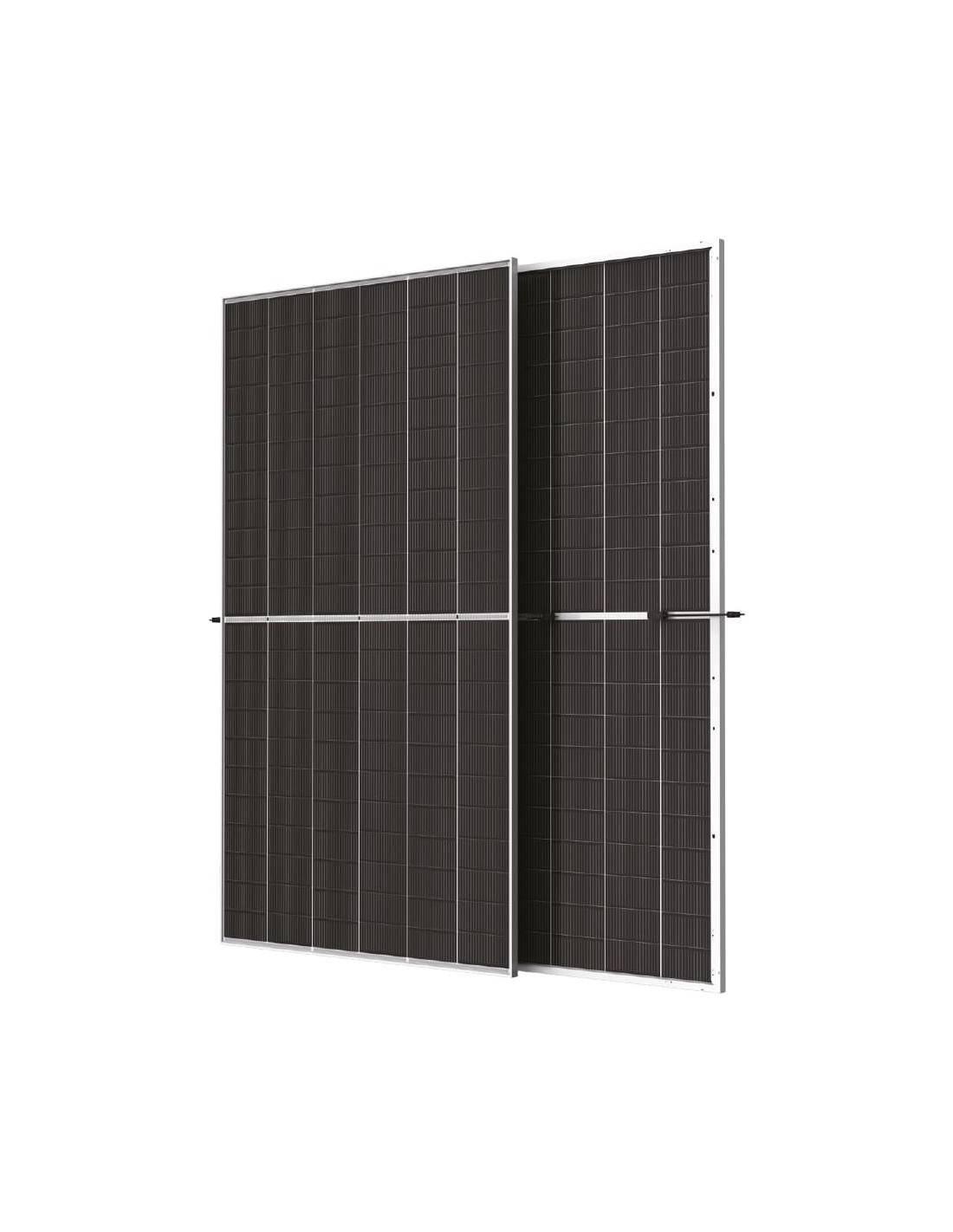

Solar Panel Trina Vertex N Neg21C.20 695W
€130.68
N-Type I-Topcon N-Type I-Topcon monocrystalline photovoltaic module of the maximum efficiency of 23.2% efficiency.
This solar panel has a positive power tolerance 0 / 5W that ensures the production of energy throughout its useful life. The technology of its N-Type Topcon cell (oxide tunnel passive contact) combines a layer of oxide with solar cell reducing recombination loss and increasing the efficiency of the cell, that is, making it more powerful and Efficient In addition, the module has an exceptional temperature coefficient of -0.29% / ° C, which improves the performance of the installation in warm climates.
Trina solar panels offer a 12 year warranty of product, manufacturing and materials and 30 years of linear power.
The main advantages of this solar panel are:
- Solar Panel with Topcon Technology Celary departure What improves its performance and efficiency
- Slower degradation in comparison to other solar panels with an initial degradation the first minimum year (
- Solar panel with better performance before partial shading situations due to its 132 smaller cells.
- High value for the customer: 35W more power than conventional technology, low voltage design reducing system rolling and the cost of energy (2 to 6%).
- Maximum efficiency of the module: 23.2%
- Power tolerance: 0-5W
- Degradation in the first year:
- Degradation of the year 2 to 30:
- Operating temperature: -40-85ºC
- Degree of protection: IP68
This solar panel is undoubtedly one of the most efficient market for residential and commercial facilities with the guarantee of one of the world’s first solar boards manufacturers. For any questions or consultation, contact our technical team in info@tienda-solar.es
Features in STC (1000 W / M2; T Cell of 25 ° C):
- POWER PICO: 695 WP
- Nominal VMPP voltage: 40.3 V
- Nominal current ImpP: 17.25 A
- VOC circuit voltage: 48.3 V
- Short circuit current: 18.28 a
- Module efficiency: 22.4%
- Dimensions of the module: 2384 x 1303 x 33 mm
- Weight: 38.3 kg
- Number of cells: 132
- Connector: MC4 EVO2
| Power (W) | 650 – 695 |
|---|---|
| Height (cm) | 230 – 239.9 |
| Width (cm) | 130 – 139.9 |
| Frame | Silver |
| Short Circuit Current Isc (A) | 18 – 18.99 |
